PESANTE

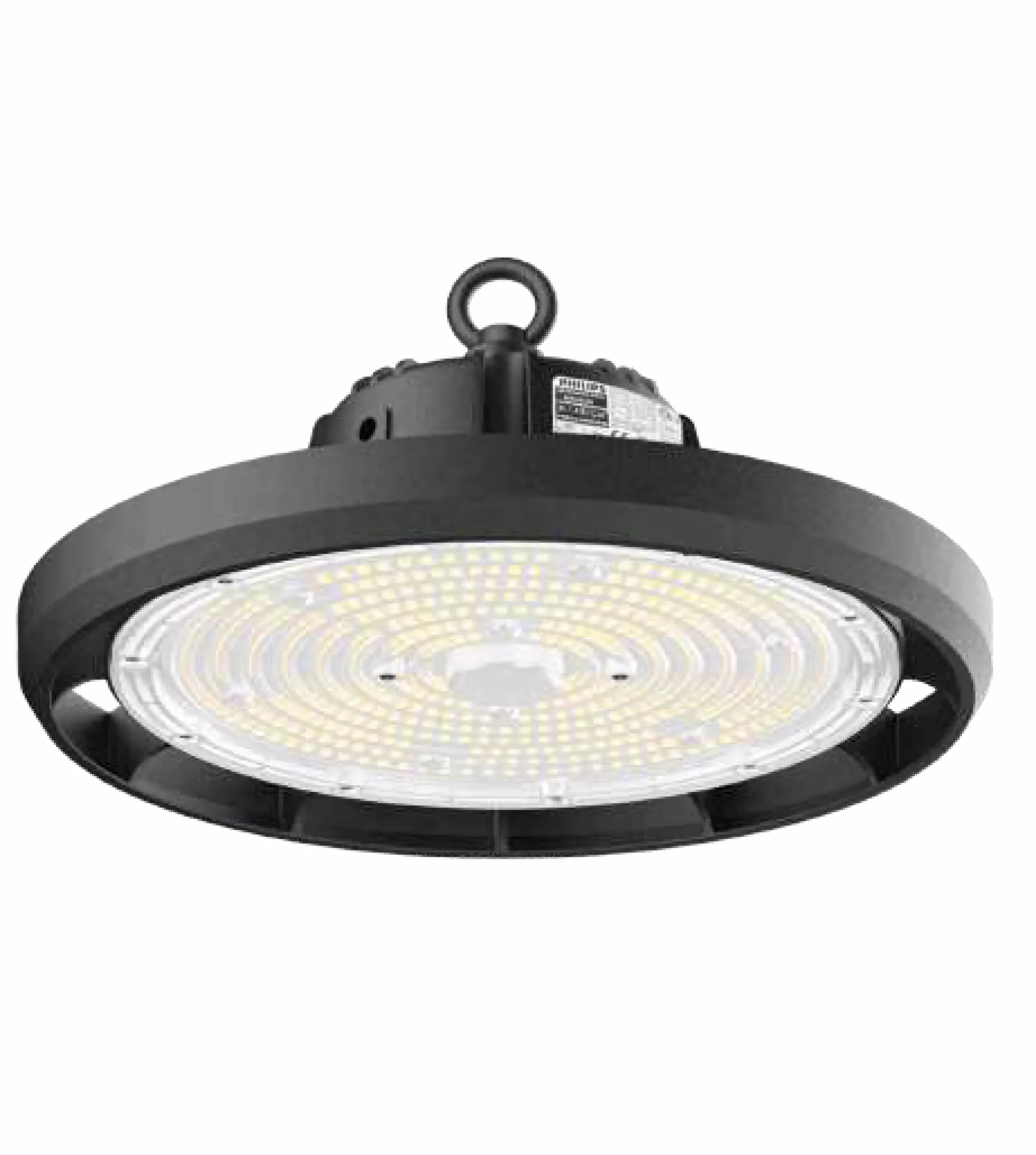

EXCELLENT DURABILITY With qualified LED chips installed in the high quality aluminum housing, the highbay is much more solid and durable. The lifespan of the high quality LED chip is up to 50,000 hours. The special designed upgrade heat sink fins on the back side could increase air contact area to speed up heat dissipation, which could also make contribution to extend the LED lifespan.
Product Datasheet
Product Advantages And Features :
-
Hollow heat sink design increases airflow for better heat dissipation.
-
High lumen LED with 50,000 hrs lifespan.
-
Imported optical lens with luminous efficiency up to 95%.
-
High-quality aluminum alloy: anti-corrosion, substantial, durable, artistic, and practical. High craft manifests production value of famous brand.
-
Designed diamond face reflection process with super high efficiency reflection light source, effectively enhancing the brightness of illumination.
| Technical Specification | Value |
|---|---|
| Lamp | LED |
| Chip | COB |
| Wattage (W) | 8 / 15 |
| CCT | 2700K, 3000K, 4000K, 6000K |
| Control | Switch only / DALI / 1-10V / Phase |
| Voltage | 85-265V 50/60Hz |
| Color Rendering Index | >90 |
| UGR | <19 |
| Dimensions (mm) | 90 × 134 × 102H |
| Cutout (mm) | 90 |
| IP rating | IP 44 |
| Temperature | −25°C to +55°C |
| Glowing Wire Test | 850° |
| Energy class | A++ |
| Beam | 15°, 30°, 48°, 60° |
| Lumen | 960 lm / 1800 lm |
